Detail produk:
|
| Material: | Steel | Rated Load: | 10KN |
|---|---|---|---|
| Weight: | 1.8KG | Jenis: | Pulley tali kawat |
| Application: | lifting for Rope Pulley Blocks | Artikel: | OEM Timing Lifting Tackle untuk Memindahkan Objek Berat |

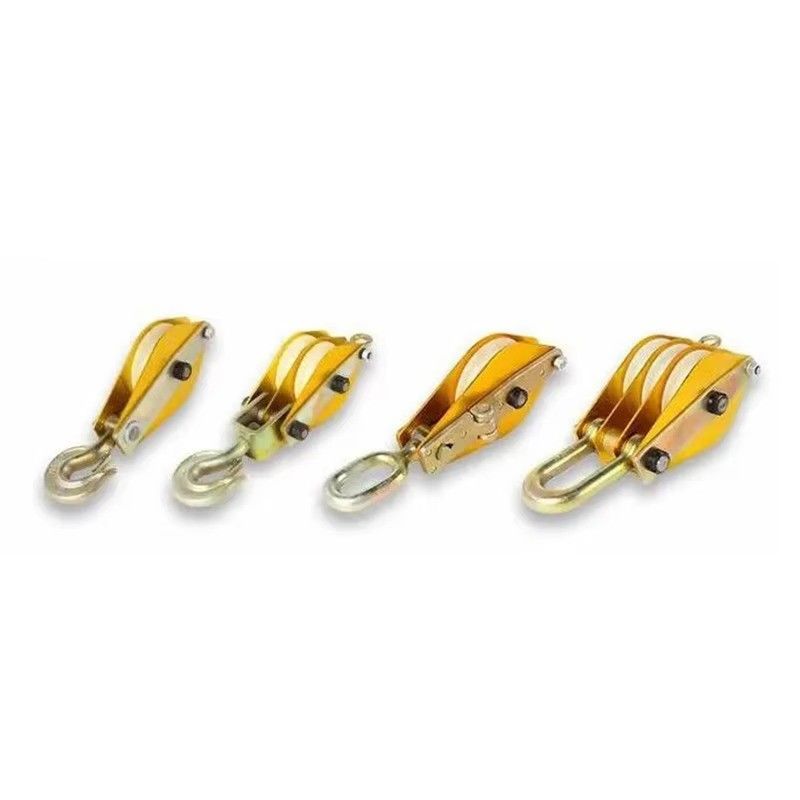

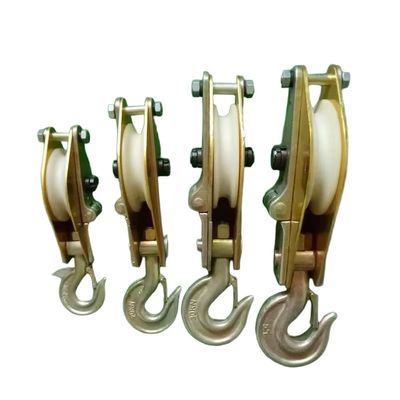

OEM Timing Lifting Tackle untuk Memindahkan Objek Berat
|
Model
|
Jumlah bungkus
|
Beban nominal ((KN)
|
Cocok untuk tali kawat ((mm)
|
Berat ((kg)
|
|
QHN1x1
|
1
|
10
|
φ7.7
|
1.8
|
|
QHN1x2
|
2
|
φ5.7
|
1.8
|
|
|
QHN1x3
|
3
|
φ5.7
|
2.1
|
|
|
QHN2x1
|
1
|
20
|
φ11
|
2.9
|
|
QHN2x2
|
2
|
φ7.7
|
3.1
|
|
|
QHN2x3
|
3
|
φ7.7
|
3.8
|
|
|
QHN3x1
|
1
|
30
|
φ12.5
|
4.1
|
|
QHN3x2
|
2
|
φ11
|
4.3
|
|
|
QHN3x3
|
3
|
φ7.7
|
5.3
|
|
Model
|
Jumlah bungkus
|
Beban nominal ((KN)
|
Cocok untuk tali kawat ((mm)
|
Berat ((kg)
|
|
QHN5x1
|
1
|
50
|
φ15.5
|
5.6
|
|
QHN5x2
|
2
|
φ12.5
|
6.1
|
|
|
QHN5x3
|
3
|
φ11
|
7.3
|
|
|
QHN8x1
|
1
|
80
|
φ18.5
|
8.8
|
|
QHN8x2
|
2
|
φ15.5
|
8.6
|
|
|
QHN8x3
|
3
|
φ12.5
|
9.6
|
|
|
QHN10x1
|
1
|
100
|
φ20
|
12.1
|
|
QHN10x2
|
2
|
φ18.5
|
11.8
|
|
|
QHN10x3
|
3
|
φ15.5
|
13.2
|
